Key features

• Unified, industry standard, well debugged and documented ultra-high performance FPGA+FMC platforms minimizing total design time and final cost for end user applications.
• High performance AdvancedMC (AMC) modules with high-capacity Xilinx FPGA and FMC/FMC+ site for stand-alone and distributed TORNADO-MTCA® MicroTCA DSP systems and stand-alone/embedded applications.
• Xilinx Virtex Ultrascale/Ultrascale+ and Kintex UltraScale/UltraScale+ FPGA
• FMC/HPC (VITA 57.1) or FMC+/HSPC(e) (VITA 57.4) site for user application adopted I/O (AD/DA, SFP+, QSFP+, SDR, RF, etc.) with FMC submodule
• In-chassis AMC-to-AMC high-speed real-time data transfer via AMC Fabric-D/E/F/G ports 4-7/8-11 (AMC.2 10GbE, 40GbE, 100GbE), AMC.4 Serial RapidIO (20Gbps, 50Gbps, 100Gbps), AMC.1 PCIe (32Gbps, 64Gbps, 128Gbps)
• Optional support for AMC ports 12-15/17-20 ("free" protocol) for high-speed in-chassis AMC-to-AMC real-time data transfer
• AMC Fabric-B ports 2-3 (AMC.3 SATA/SAS ) for communication with adjacent HDD/SSD AMC-modules
• AMC Fabric-A ports 0-1 (AMC.2 1GbE) for remote control and in-chassis AMC-to-AMC control communication
• Front-panel application controlled LEDs
• MMC controller with proprietary TAMMC® high-speed MMC-kernel from MicroLAB Systems, monitoring of power/temperature, and status indication for reliable and safe device operation
• Complies with PICMG® 3.0 Rev.3.0, MicroTCA.0 R1.0, AMC.0 R2.0, IPMI 1.5, VITA® 57.1/57.4 specifications
• Stand-alone operation from +12V power supply for user embedded applications
• Commercial and industrial operating temperature ranges

Development tools

• Embedded high-speed USB FPGA JTAG emulator (equivalent to MIRAGE-UXF USB JTAG emulator for Xilinx FPGA)
• Unified TASDK® tools for TORNADO AdvancedMC (AMC) modules with high-level API for development of FPGA CPU applications, FPGA bitstreams and host PC Windows/Linux and Android® remote control applications
• TASDK/ThreadX toolkit with pre-certified Microsoft Azure ThreadX® RTOS for high-performance demanding applications
• Demo projects for device tests and user projects startup
• Xilinx Vivado tools and JTAG emulator to compile and debug user FPGA applications

Applications

• Telecommunication and telephony
• RF and digital radio
• Image processing
• Radars and astrophysics
• Industrial, instrumentation and medical
• General stand-alone and distributed DSP applications

** Notes

MicroLAB Systems can modify its products to meet special customer requirements. MOQ may apply. Contact MicroLAB Systems for more details.

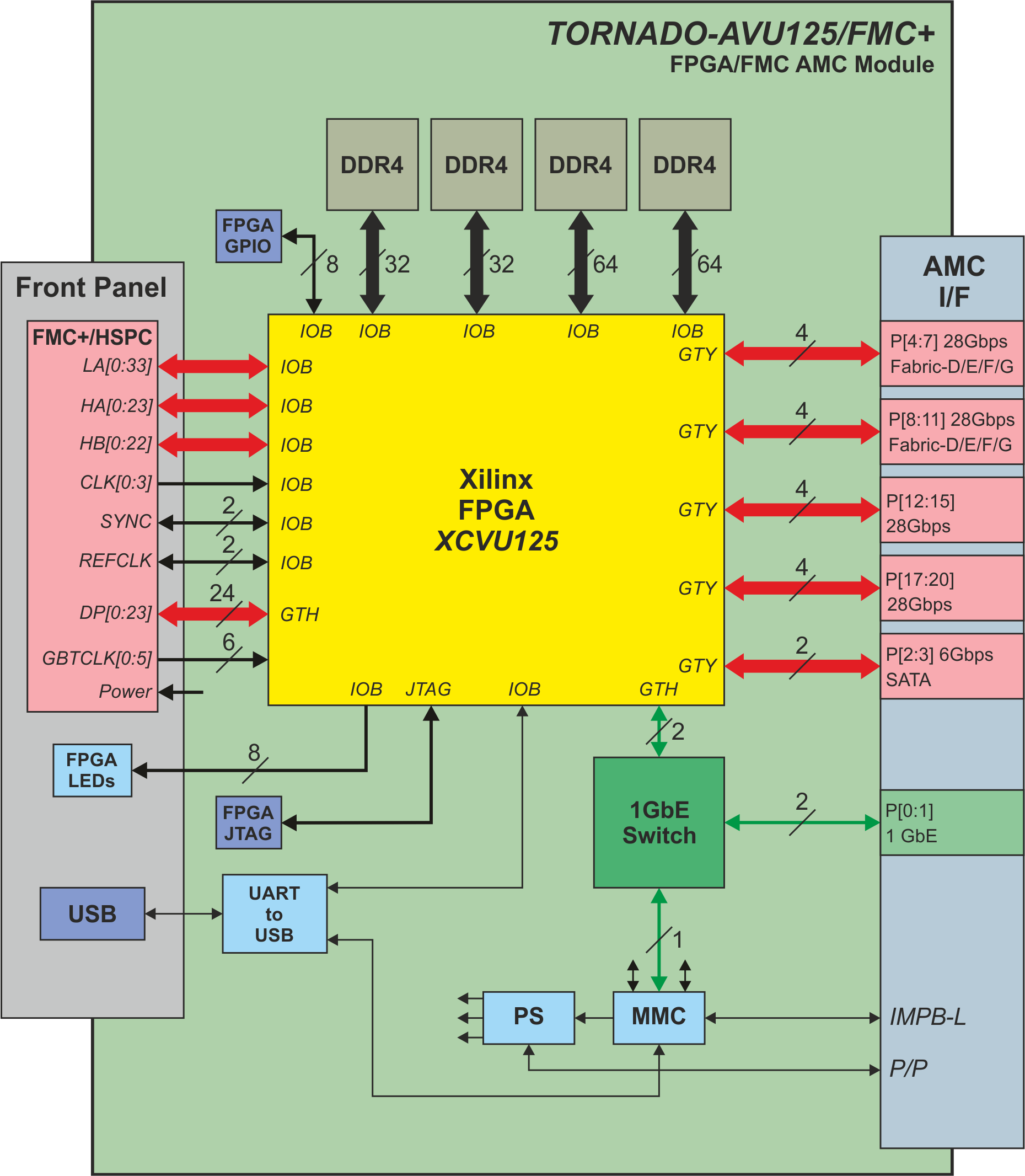

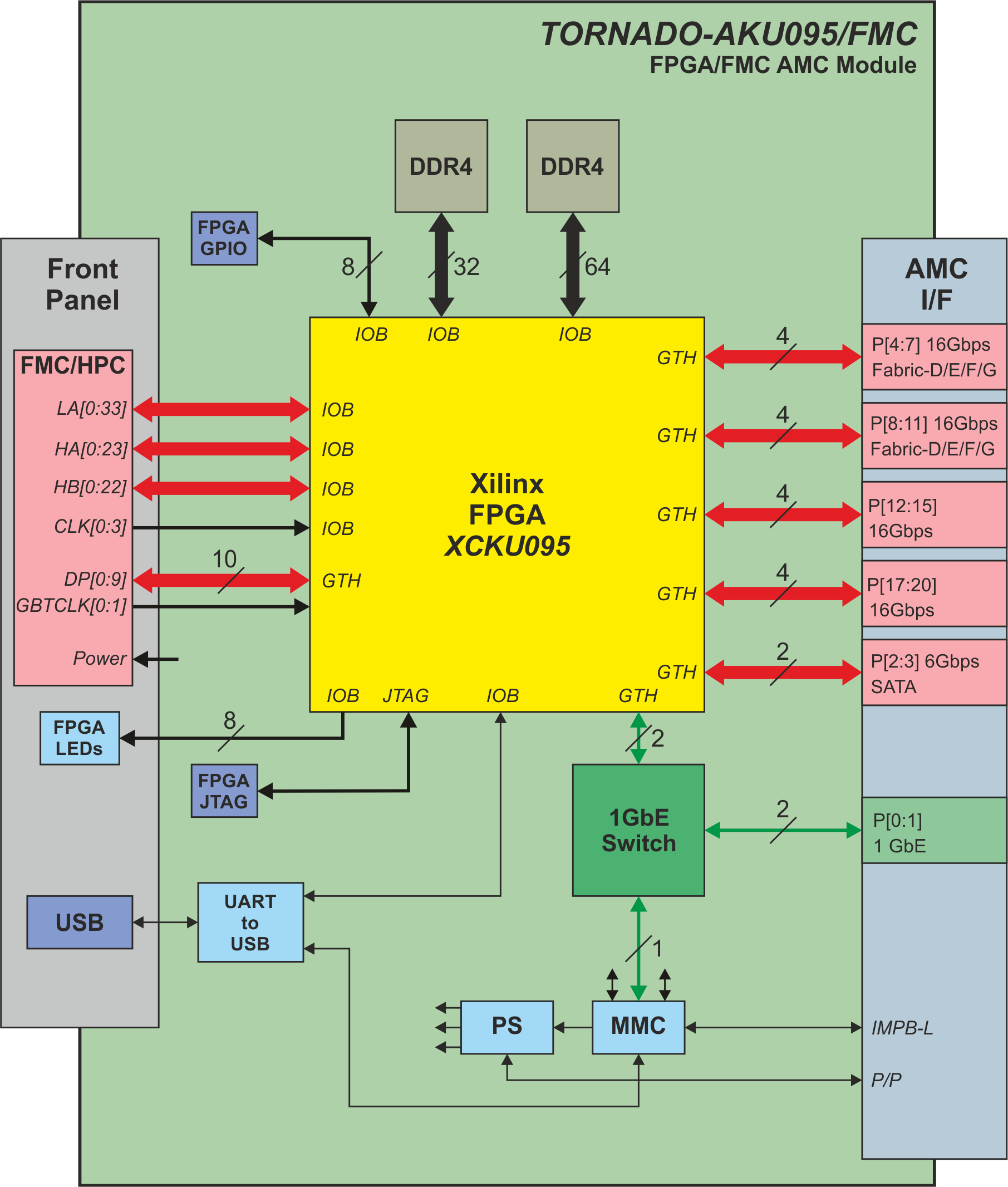

Block diagram for TORNADO-AVU125/FMC+ AdvancedMC (AMC) module with Virtex Ultrascale FPGA and FMC+ site
(click to enlarge)
