  MIRAGE-NE1 JTAG/MPSD Emulator

перейти на Русский

Home

News

Products

Price

Publications

Support

About

Contacts

Contents





Texas InstrumentsFreescale Power PC Processors
PICMG Open Modular Computing Standards
PICMG Advance Mezzanine Card (AMC) Specification
PICMG MicroTCA Specification





Key features

  • Supports all TI TMS320 DSP including 'C6xxx, 'C5xxx, 'C2xxx,  'VC33, 'C4x, 'C5x, 'C3x, OMAP, DaVinchi, and TI ARM cores
  • Supported by TI Code Composer Studio and Code Composer tools
  • Includes ExpressCard/34 single-channel universal JTAG/MPSD emulator board and one detachable UniPod
  • ExpressCard PCIe I/F
  • Up to x10 times faster than USB and Ethernet emulators, up to x2 times faster than MicroLAB Systems MIRAGE-NC2 PCMCIA CardBus emulator and PCI-bus emulators, and up to x5 times faster than MicroLAB Systems MIRAGE-NP2 PCMCIA PC-card emulator and all ISA-bus emulators
  • Upward compatible upgrade for MicroLAB Systems MIRAGE-NC2 PCMCIA CardBus emulator and MIRAGE-NP2 PCMCIA PC-card emulator
  • Expands to any number of emulator channels
  • Ultra-compact and ultra-light weight UniPod  (W53xH33xD14mm, 2.1"x1.3"x0.6", 79g, 0.17lb with connection cable)
  • UniPod supports both JTAG and TI MPSD (‘C3x) target paths, thus eliminating the need to have two different pods for  different generations of TI DSPs
  • 2 meter (6.6 ft) long ultra-flexible and light weight cable for detachable connection between PCMCIA plug-in emulator board and UniPod
  • Supports 0.5V .. 5V target JTAG/MPSD power
  • Programmable 0.5MHz .. 30MHz JTAG source clock
  • Accurate measurement of target power voltage and JTAG/MPSD path clock frequency for ‘all-in-one’ target DSP device diagnostic
  • Six LED indicators at UniPod for target status information
  • High noise immunity

Host PC Support

  • Plug-and-Play installation (notebooks only)
  • Installs into ExpressCard slot of the notebook PC
  • Installs into PCIe slot of desktop PC via PCIe-to-ExpressCard adapter

DSP Software Tools

  • Runs under all TI Code Composer and Code Composer Studio Debugging tools
  • Fast JTAG/MPSD download speed and RTDX

Application Features

  • Ideal to debug single- and multi-DSP/ARM boards
  • A "must have" to debug of compact and light weight devices
  • Field deployable for real time DSP device debugging and diagnostic
  • Easily transportable between notebook and desktop PC
  • Ideal to debug target DSP devices with "main power isolation"
  • One UniPod for both JTAG and MPSD target paths eliminates the need to have two different pods and makes you ready to debug any of TI DSP and ARM core

Technical Support and Services

  • Lifetime warranty, technical support and software updates
  MIRAGE-NE1 Universal Single-channel JTAG/MPSD Emulator for Notebook/Desktop PC with ExpressCard slot

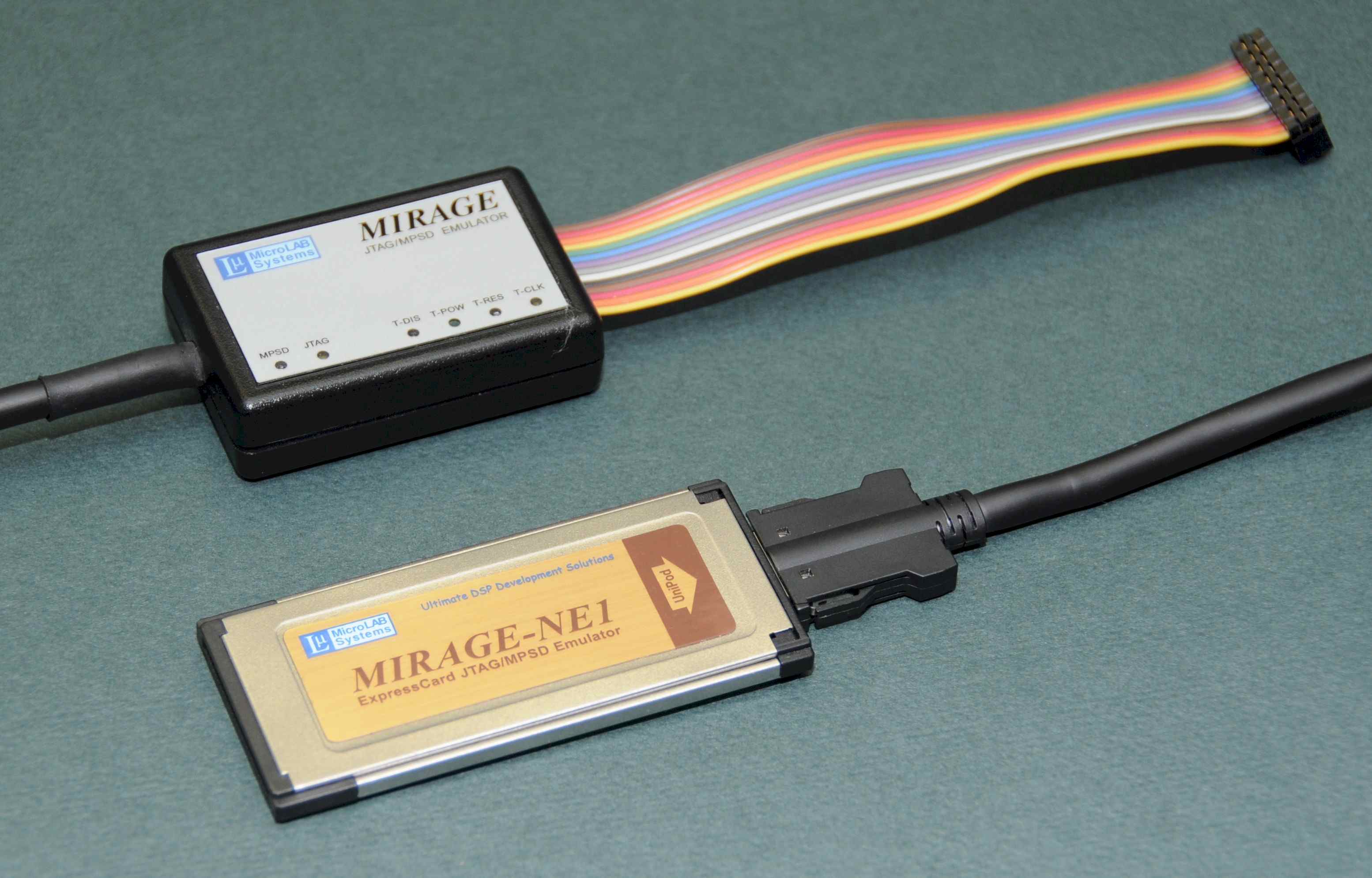

MIRAGE-NE1 Emulator with UniPod
(click for larger image)

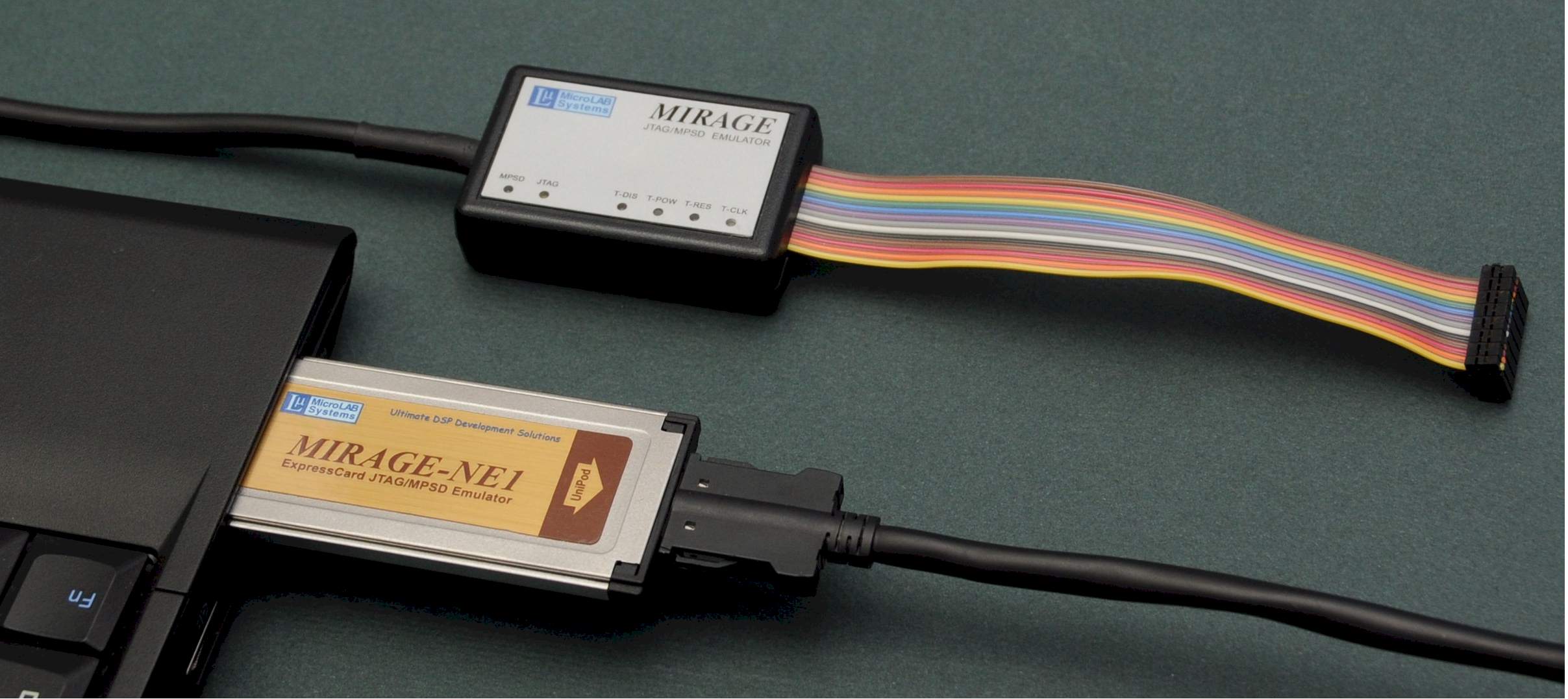

MIRAGE-NE1 Emulator partially installed into the ExpressCard slot of the Notebook PC
MIRAGE-NE1 Emulator Ready to Install into ExpressCard Slot of the Notebook PC
(click for larger image)

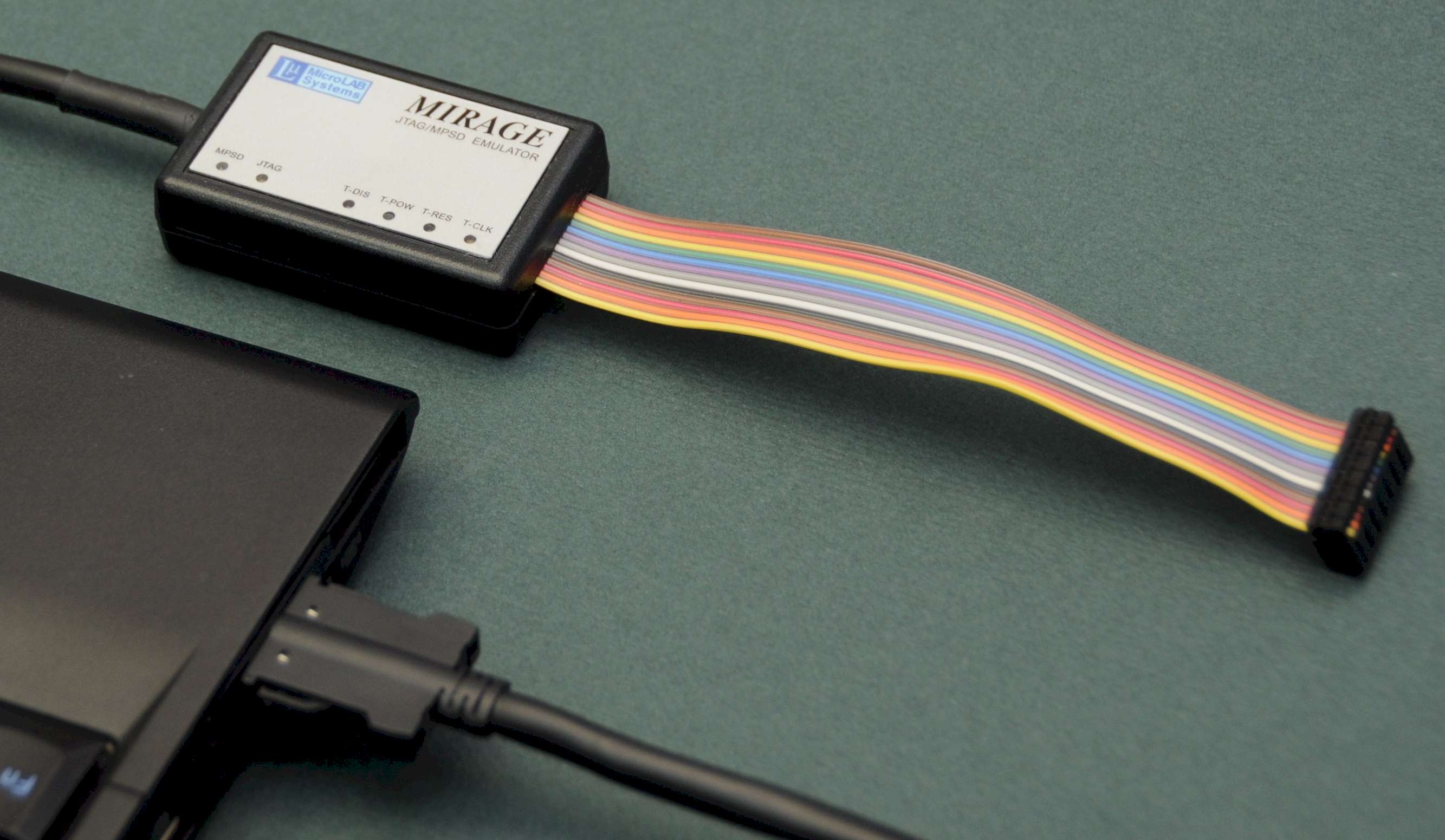

MIRAGE-NE1 Emulator fully installed into the ExpressCard slot of the Notebook PC
MIRAGE-NE1 Emulator Installed into ExpressCard Slot of the Notebook PC
(click for larger image)

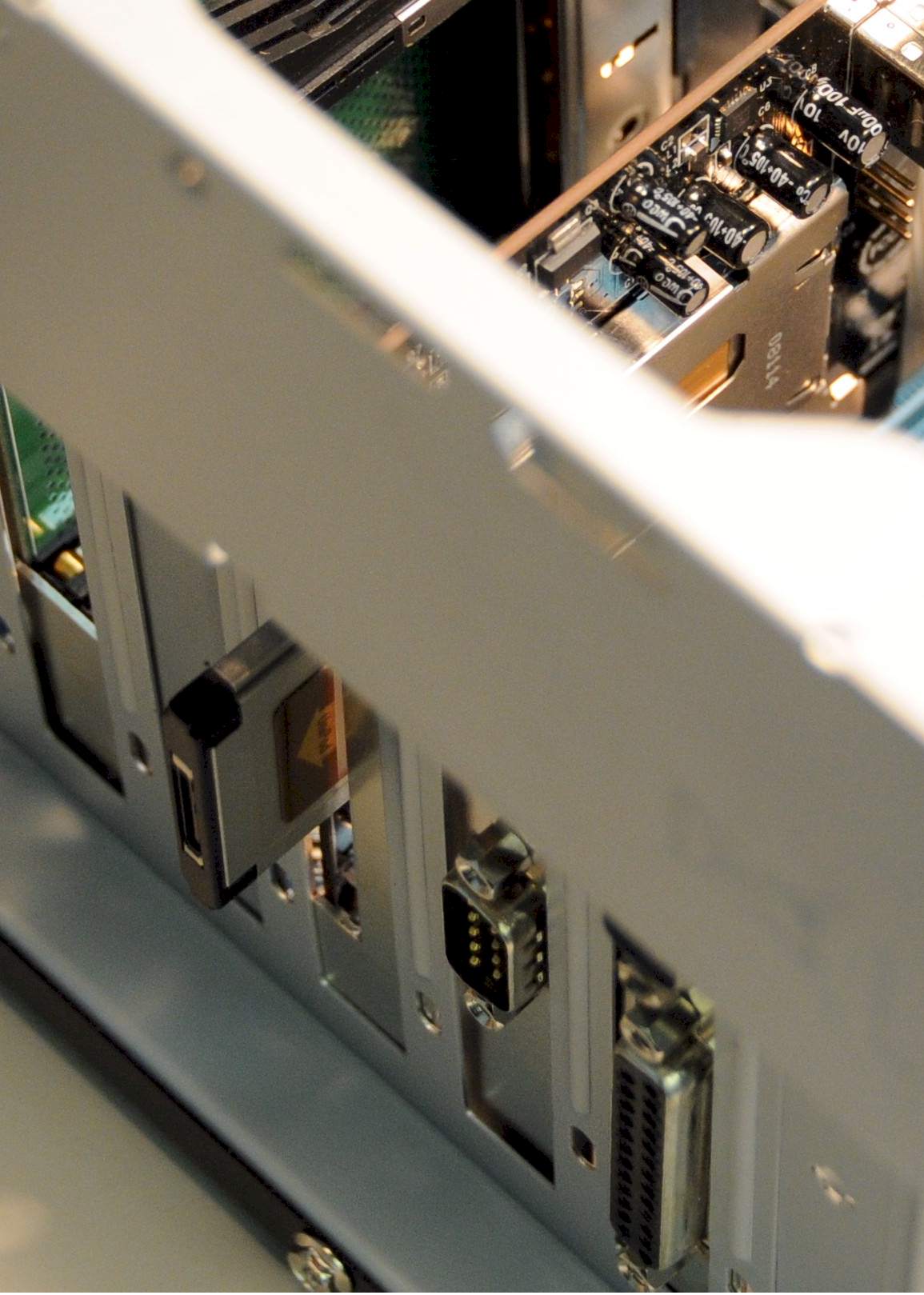

MIRAGE-NE1 Emulator board installed into the Desktop PC using PCIe-to-ExpressCard Adapter Board
MIRAGE-NE1 Emulator Board Installed into the Desktop PC using PCIe-to-ExpressCard Adapter Card
(click for larger image)


Overview

MIRAGE-NE1 is the next generation and industry first single- channel universal JTAG/MPSD emulator for all TI TMS320 DSP and TI ARM platforms and is designed to install into the host notebook and desktop PC with ExpressCard slots.

MIRAGE-NE1  emulator board uses host ExpressCard PCI-Express I/F and is therefore up to x10 times faster than USB and Ethernet emulators, up to x2 times faster than MicroLAB Systems MIRAGE-NC2 PCMCIA CardBus emulator and PCI-bus emulators, and up to x5 times faster than MicroLAB Systems MIRAGE-NP2 PCMCIA PC-card emulator and all ISA-bus emulator. MIRAGE-NE1  emulator board is an upward compatible upgrade for MicroLAB Systems MIRAGE-NC2 PCMCIA CardBus emulator board and MIRAGE-NP2 PCMCIA PC-card emulator board

Maintaining a leadership in the industry, MIRAGE-Nxx emulators are the first to introduce universal JTAG/MPSD UniPod, which features ultra-compact   and ultra-light weight design (dimensions are 53x33x14mm, 2.1"x1.3"x0.6"; weight is 79g, 0.17lb with connection cable) with ultra-long connection cable (2m, 6.6ft), provides advanced performance, and eliminates the need to have two different JTAG and MPSD ('C3x) pods in order to debug different TI DSP/MC platforms.

MIRAGE-Nxx emulators are the first to integrate a universal JTAG/MPSD emulator with target diagnostic features such as measurement of target power voltage and scan-path clock frequency thus saving the user effort and time in debugging target DSP devices.

The industry’s longest 2 meter (6.6 ft) UniPod cable, all-in-one support for JTAG/MPSD target paths, compliance with target 0.5v..5v power voltage, programmable 0.5MHz..30MHz JTAG clock, fast JTAG/MPSD upload/download speed and RTDX, embedded target diagnostic, ultra-compact and ultra-light weight design, and simple Plug-and-Play installation make all MIRAGE-Nxx  emulators an ultimate ‘all-in-one’ emulation and diagnostic tool and ‘must have’ instrument for all DSP hardware and software engineers for both mobile and desktop workstations. With MIRAGE-Nxx emulators you are always done for any TI DSP/MC !

MIRAGE-Nxx emulators are ideal tool for debugging of the modern TI DSP/ARM target devices, which feature small size, light weight and low supply voltage, and allow either to maximize performance of target JTAG path or to comply with low power and low speed targets. MIRAGE-Nxx emulators easily expand to any number of emulation channels and are ideal tool to debug multi-DSP/MC and mixed TI DSP/MC systems.

MIRAGE-Nxx emulators run under the industry standard TI Code Composer and Code Composer Studio debugger tools.

MIRAGE-NE1 emulator directly installs into the ExpressCard slot of the notebook PC and can be installed into the  desktop PC using PCIe-to-ExpressCard adapter card available from a variety of vendors.

All MIRAGE-Nxx emulators are covered by lifetime warranty with full featured technical support and free software updates.



Ordering Info

MIRAGE-NE1/UP

  MIRAGE-NE1 ExpressCard plug-in emulator board with one JTAG/MPSD UniPod . Includes PCIe-to-ExpressCard adapter for installation into PCIe slot of desktop and industrial  PC.
MIRAGE-NE1   MIRAGE-NE1 ExpressCard plug-in emulator board only (used to upgrade from MIRAGE-NC2 and MIRAGE-NP2 emulators).
UniPod   JTAG/MPSD UniPod. Used as a replacement pod for MIRAGE-NE1 emulator and a s replacement pod or to update from MIRAGE-NC2/1UP  'medium' configurations to MIRAGE-NC2/2UP 'maximum' configurations by adding the second UniPod.



Datasheets and Application Materials

  MIRAGE-NE1  ExpressCard Emulator Datasheet
  MIRAGE-NP2  PCMCIA Emulator Presentation for USA/Canada Customers only
  MIRAGE-NP2  PCMCIA Emulator Presentation for all International Customers except USA/Canada Customers
