TORNADO-AZ/FMC AdvancedMC (AMC) Module with Zynq-7000 FPGA and FMC-site (TAZ/FMC)

Ultimate DSP Solutions

TORNADO-AZ/FMC®
AdvancedMC (AMC) module/controller with Xilinx Zynq-7000 AP SoC FPGA and FMC-site

Key Features

Unified, industry standard, well debugged and documented high performance platforms minimizing total design time and final cost for end user PICMG® MicroTCA®, AdvancedTCA® and stand-alone/embedded applications
Xilinx Zynq-7000 Kintex AP SoC FPGA (XC7Z035, XC7Z045, XC7Z100) with two ARM® cores (PS), high density logic (PL) and a pool of 12.5Gbps transceivers
VITA57.1-2008 (R2010) FMC-site for user adopted I/O with FMC HPC/LPC submodule (160 I/O, 8x GBT 12.5Gbps) upon user application requirements (AD/DA, SFP+, QSFP+, RF, etc.)
AMC Fabric-DEFG ports 4-7/8-11 for in-chassis AMC-to-AMC real-time data transfer using 10GbE, 10GBASE-BX4 (XAUI), 40GBASE-KX4, 4x Serial RapidIO (50Gbps), 4x/8x PCIe (32Gbps/64Gbps) protocols
AMC Fabric-A 1GbE ports 0-1 from PS for remote device control and in-chassis AMC-to-AMC control communication
DDR3 memory banks for PS and PL
PS NOR FLASH memory for applications, data arrays and PL bitstreams
Nonvolatile MRAM memory for critical PS application data
Front panel MicroSD card slot for applications and data
Front-panel PS and PL controlled LEDs
PL 8-bit FPGA XGPIO port for optional connection to external devices and debugging
A variety of activation modes for FMC-submodule
MMC controller with proprietary TAMMC® high-speed MMC-kernel from MicroLAB Systems, monitoring of power/temperature, and status indication for reliable and safe device operation
PS and MMC UART ports for remote control and management
Complies PICMG® 3.0 Rev.3.0, MicroTCA.0 R1.0, AMC.0 R2.0, IPMI 1.5, VITA® 57.1-2008 (R2010) specifications
Stand-alone operation from +12V power supply for user embedded applications
Commercial and industrial operating temperature ranges

Development Tools

Unified TASDK® tools for TORNADO AMC modules with high-level API for development of ARM applications, PL bitstreams and host PC Windows/Linux and Android® remote control applications
Linux, FreeRTOS and "bare-metal" API for ARM applications
TASDK/ThreadX toolkit with pre-certified Microsoft Azure ThreadX® RTOS for high-performance demanding applications
Demo projects for device tests and user projects startup
Xilinx Vivado tools, IP and JTAG emulator to compile and debug PS applications and PL bitstreams

Applications

Telecommunication and telephony
RF and digital radio
General stand-alone and distributed DSP applications
Image processing
Radars and astrophysics
Industrial, instrumentation and medical

** Notes

MicroLAB Systems can modify its products to meet special customer requirements. MOQ may apply. Contact MicroLAB Systems for more details.

TORNADO-AZ/FMC® (M/S) AdvancedMC (AMC) module
(click to enlarge)

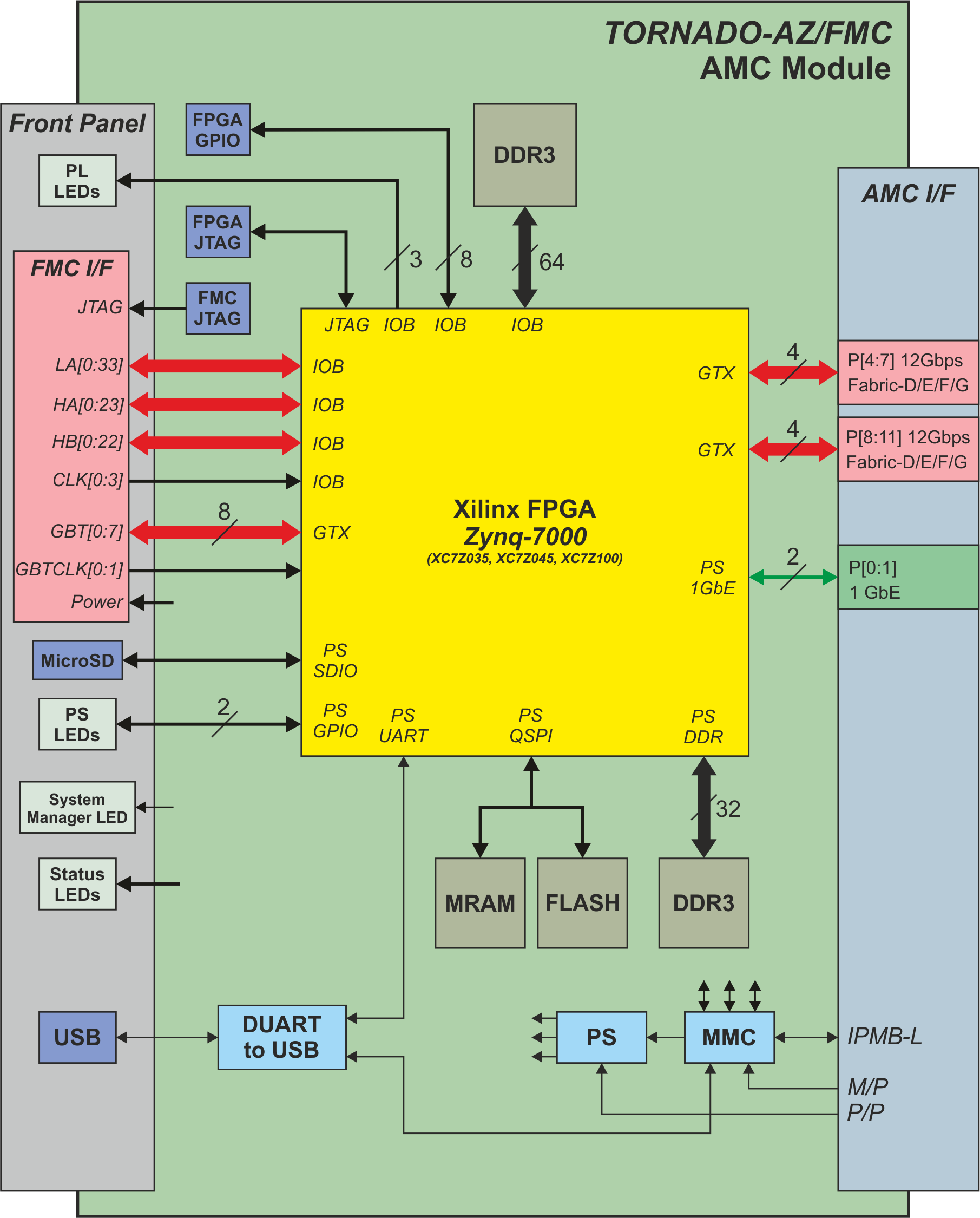

Block diagram of TORNADO-AZ/FMC AdvancedMC (AMC) module
(click to enlarge)

TORNADO-MTCA® modular RF system including TORNADO-AZ/FMC AMC-module with FMC-submodule, TORNADO-A6678/FMC AMC-module with FMC-submodule, TORNADO-ARX1 RF AMC-module and T/AX-DSFPX AMC-module with 10GbE SFP+ ports all installed into MicroTCA® 1U chassis with 10GbE switching fabric
(click to enlarge)

TORNADO-mMTCA® modular DSP mini system including TORNADO-AZ/FMC AMC-module with FMC-submodule and T/AX-DSFPX AMC-module with 10GbE SFP+ ports all installed into dual-slot MicroTCA® mini chassis with passive backplane
(click to enlarge)

Ordering Information

	TAZFMC1B/XC7Z1002I/D1/F2/E512/M128/A01/SD/LD4/LI/FC/FB/SA/MS
		TORNADO-AZ/FMC rev.1B AdvancedMC (AMC) module (*TAZFMC1B), Xilinx Zynq-7000 XC7Z100-2FFG900I FPGA (XZ1002I), Zynq/PS 1GB (256Mx32) DDR3 memory (D1), Zynq/PS 2Gb (256Mx8) QSPI NOR FLASH memory (F2), Zynq/PS 512Kb (64Kx8) I²C SEEPROM memory (E512), Zynq/PS 1Mb (128Kx8) MRAM memory (M128), 1GbE PHY for AMC ports 0 and 1 (A01), MicroSD card slot (SD), Zynq/PL 4GB (512Mx64) DDR3 memory (LD4*), Zynq/PL 8-bit XGPIO (LI), FMC-site for FMC-submodule (FC), Zynq/PL bitstream decryption battery (FB), stand-alone/embedded operation mode support (SA), single-width mid-size (M/S) AdvancedMC (AMC) module (MS), standard 10mm FMC stacking. -40ºC…+55ºC operating temperature range (derived from FPGA p/n).

	TAZFMC1B/XC7Z0351C/D1/F2/E512/M128/A01/SD/LD2/LI/FC/FB/SA/MS
		TORNADO-AZ/FMC rev.1B AdvancedMC (AMC) module (*TAZFMC1B), Xilinx Zynq-7000 XC7Z035-1FFG900C FPGA (XZ0351C), Zynq/PS 1GB (256Mx32) DDR3 memory (D1), Zynq/PS 2Gb (256Mx8) QSPI NOR FLASH memory (F2), Zynq/PS 512Kb (64Kx8) I²C SEEPROM memory (E512), Zynq/PS 1Mb (128Kx8) MRAM memory (M128), 1GbE PHY for AMC ports 0 and 1 (A01), MicroSD card slot (SD), Zynq/PL 2GB (256Mx64) DDR3 memory (LD2*), Zynq/PL 8-bit XGPIO (LI), FMC-site for FMC-submodule (FC), Zynq/PL bitstream decryption battery (FB), stand-alone/embedded operation mode support (SA), single-width mid-size (M/S) AdvancedMC (AMC) module (MS), standard 10mm FMC stacking. 0ºC…+55ºC operating temperature range (derived from FPGA p/n).

Datasheets and Application Materials

		Datasheet for TORNADO-AZ/FMC AdvancedMC (AMC) module
		Presentation "New Devices for TORNADO-MTCA® MicroTCA Modular DSP Systems" (Rus)
		Presentation "RTOS Selection for TORNADO-MTCA® MicroTCA DSP Systems, Controllers and IoT" (Rus)
		Presentation "Comparing RTOS Performance" (Rus)
		Presentation "PICMG® MicroTCA Standard and its Specifics for DSP Applications" (Rus)
		Presentation "TORNADO-MTCA DSP Systems in MicroTCA Standard" (Rus)
		Presentation "TASDK® Software Development Tools for TORNADO-MTCA DSP Systems" (Rus)
		Paper in Russian 'Components and Technologies' magazine (Jan-2015): "TORNADO-A6678 AdvancedMC (AMC) module Applications in MicroTCA DSP Systems" (Rus)
		Paper in Russian 'Telecommunications' magazine (Jan-2015): "TORNADO-A6678 AdvancedMC (AMC) module Applications in MicroTCA DSP Systems" (Rus)
		Application note AN-TARxMTCA-1A (2016-01) (Rus): O.A.Vasiliev, P.A.Semyonov: "Distributed Multichannel Radiomonitoring Systems TORNADO-RxMTCA®"
		Paper in 'Information Security - Inside' magazine (Jan-2016): "Rubic's Radiocube: Building a Multichannel Radio Monitoring System"
