  T/AX-DSFPX
Network AMC-module with two LAN/WAN 10GbE SFP+ ports

ïåðåéòè íà Ðóññêèé

Home

News

Products

Price

Publications

Support

About

Contacts

Contents





Texas InstrumentsFreescale Power PC Processors
PICMG Open Modular Computing Standards
PICMG Advance Mezzanine Card (AMC) Specification
PICMG MicroTCA Specification





Key features

  • Ideal for long distance unit-to-unit 10GbE LAN/WAN connections in distributed and remote MicroTCA® and AdvancedTCA® applications
  • Dual-port 10GbE LAN/WAN network AMC-module
  • Forwards data between two 10GbE front panel uplink SFP+ ports and two 10GbE AMC backplane ports with up to 80km long uplink connection
  • A variety of PCS configurations for uplink SFP+ ports and AMC backplane ports:
    • AMC XAUI to SFP+ 10GbE/1GbE
    • AMC 10GBASE-R/KR to SFP+ 10GbE/1GbE
    • AMC RXAUI to SFP+ 10GbE/1GbE
  • Secure uplink communication

Details

  • Two front panel 10GbE uplink SFP+ ports
  • Adaptive 10Gbps (EDC+CDR) engines allow reliable uplink connections using 80km long SM fiber, 220m long MM fiber and 15m long passive twinax cable
  • A variety of 10GbE and 1GbE LAN/WAN PCS settings for uplink SFP+ ports
  • Automatic PCS setting for uplink SFP+ ports upon the type of SFP+/SFP transceiver modules
  • A variety of 10GbE PCS settings for AMC backplane ports
  • Up to 10.3Gbps operation at legacy backplanes (T/AX-DSFPX-A only)
  • “Swap” mode for uplink SFP+ ports
  • Secure communication for uplink SFP+ ports (T/AX-DSFPX-A only)
  • Traffic statistics (T/AX-DSFPX-A only)
  • Device configuration saved in non-volatile memory and restored during power on and SFP+ transceiver insertion
  • Front panel status LEDs for each SFP+ port
  • MMC firmware on the top of TAMMC® MMC-kernel from MicroLAB Systems
  • Continuous monitoring of on-board power supplies and multi-point temperature for reliable operation and protection
  • Remote command interface for device control and monitoring
  • OS independent, no drivers required
  • Complies PICMG® 3.0 Rev.3.0, AMC.0 R2.0, MTCA.0 R1.0 and IPMI 1.5 specifications
  • Mid-size single-width AMC-module form-factor
  • Low power consumption (9W typ)

Applications

  • Distributed MicroTCA® and AdvancedTCA® systems
  • Remote DAQ and DAQ+DSP MicroTCA® systems
  • Telecommunication
  • Multichannel image processing
  • Industrial and instrumentation
  • Multichannel digital radio and cell telephony
  • Astrophysics and astronomy



** Notes

MicroLAB Systems can modify this product to meet special customer requirements. MOQ may apply. Contact MicroLAB Systems for more details.

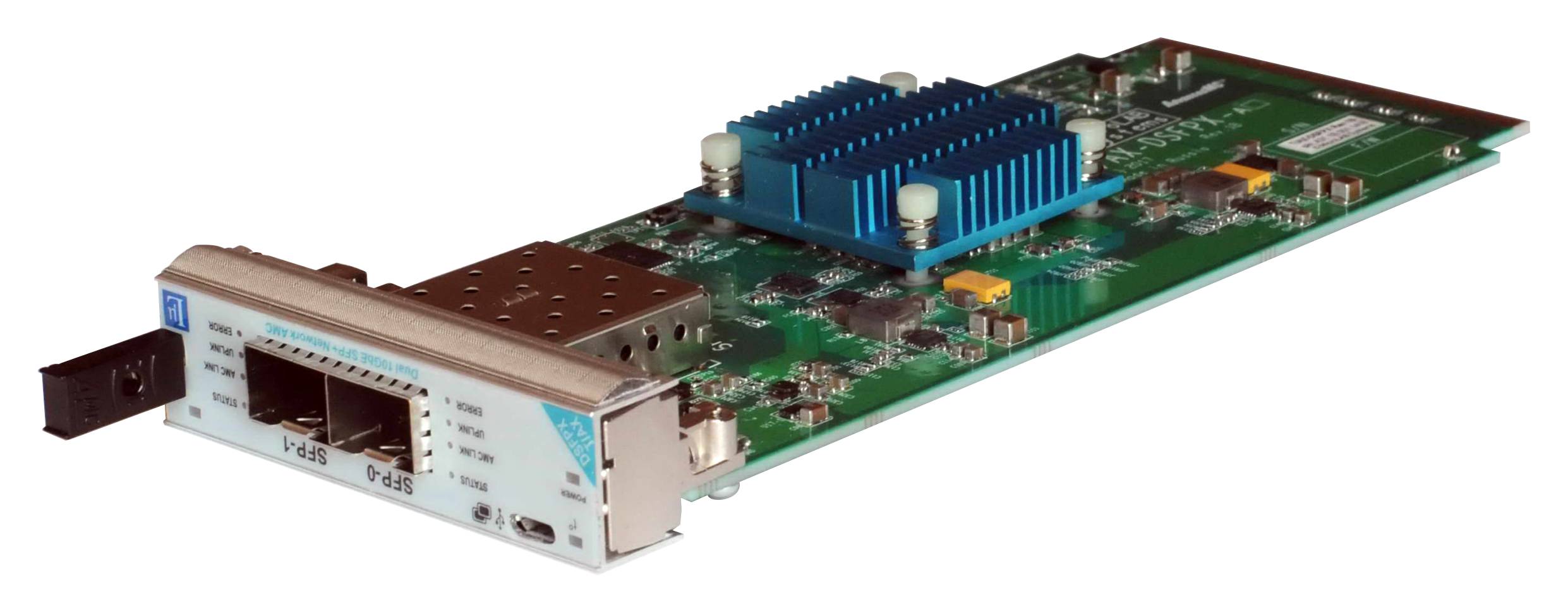

T/AX-DSFPX Network AMC-module (click to enlarge)
T/AX-DSFPX network AMC-module
(click to enlarge)

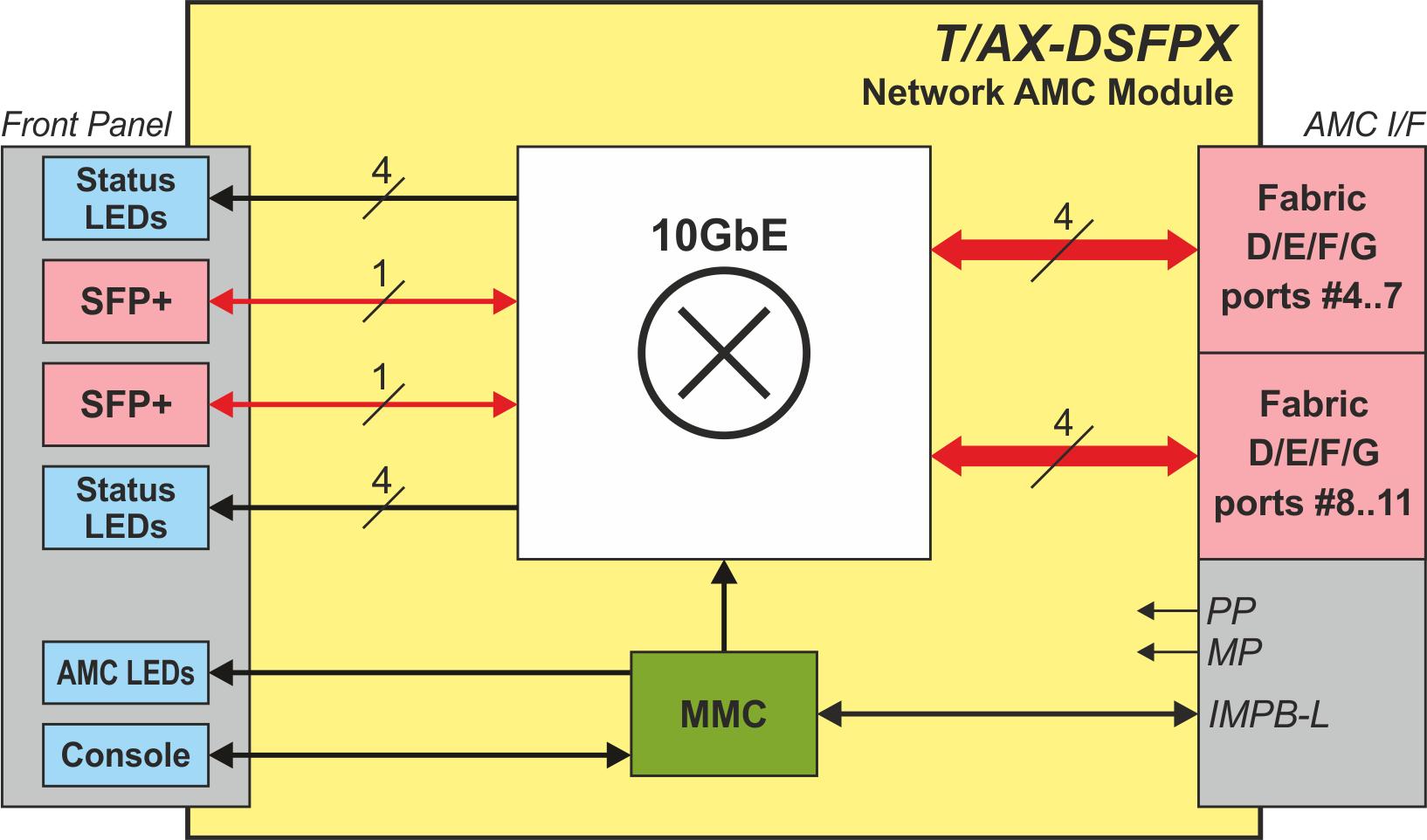

Block Diagram for T/AX-DSFPX network AMC-module (click to enlarge)
Block Diagram for T/AX-DSFPX network AMC-module
(click to enlarge)


Compact TORNADO-MTCA® Modular DSP/FPGA System with 2x T/AX-DSFPX network AMC-modules and 4x M/S TORNADO-A6678® DSP/FPGA AMC-modules in 19" 1U 6-slot MicroTCA® chassis with 10GbE backplane switch (click to enlarge)
Compact TORNADO-MTCA® modular DSP/FPGA system with two T/AX-DSFPX network AMC-modules and four4x M/S TORNADO-A6678® DSP/FPGA AMC-modules in 19" 1U 6-slot MicroTCA® chassis with 10GbE backplane switch
(click to enlarge)


Compact TORNADO-RxMTCA® modular Radiomonitoring & DSP/FPGA system with two TORNADO-ARX1® radioprocessor , M/S TORNADO-A6678® AMC-module and T/AX-DSFPX network AMC-module in 19" 1U 6-slot MicroTCA® chassis with 10GbE backplane switch
Compact TORNADO-RxMTCA® modular Radiomonitoring & DSP/FPGA system
with two TORNADO-ARX1® radioprocessing AMC-module, M/S TORNADO-A6678® AMC-module and T/AX-DSFPX network AMC-module in 19" 1U 6-slot MicroTCA® chassis with 10GbE backplane switch
(click to enlarge)

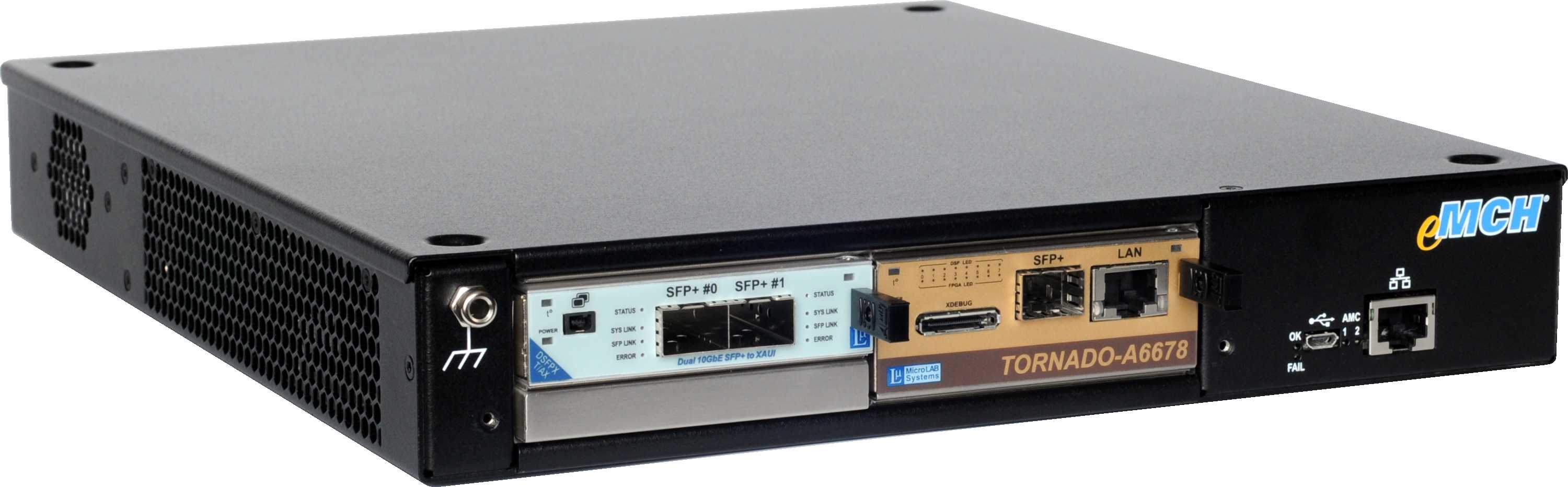

Mini TORNADO-mMTCA® Modular DSP/FPGA System with T/AX-DSFPX network AMC-module and F/S TORNADO-A6678® DSP/FPGA AMC-module in 2-slot Mini  MicroTCA® chassis with passive backplane (click to enlarge)
Mini TORNADO-mMTCA® modular DSP/FPGA system with T/AX-DSFPX network AMC-module and F/
S TORNADO-A6678® DSP/FPGA AMC-module in 2-slot Mini MicroTCA® chassis with passive backplane
(click to enlarge)


Mini TORNADO-RxmMTCA® modular Radiomonitoring & DSP/FPGA system with TORNADO-ARX1® radioprocessor AMC-module and T/AX-DSFPX network AMC-module in 2-slot Mini  MicroTCA® chassis with passive backplane
Mini TORNADO-RxmMTCA® modular Radiomonitoring & DSP/FPGA system with
TORNADO-ARX1® radioprocessing AMC-module and T/AX-DSFPX network AMC-module in 2-slot Mini  MicroTCA® chassis with passive backplane
(click to enlarge)



Technical Specifications (T/AX-DSFPX rev.1A)

Front panel uplink SFP+ ports

  • Two 10GbE uplink SFP+ ports with independent PCS settings:
    • 10GbE 10GBASE-R LAN PCS support (default PCS mode for 10Gbps SFP+ transceivers)
    • 10GbE 10GBASE-W WAN PCS support (both SFP+ ports only) (optional PCS mode for 10Gbps SFP+ transceivers)
    • 1GbE 1000BASE-X Autonegotiation ON/OFF PCS support for 1Gbps SFP modules and for 10Gbps SFP+ modules (1Gbps module compatibility is required) (default PCS mode for 1Gbps SFP  transceivers and optional for 10Gbps SFP+ transceivers)
  • 10Gbps SFP+ and 1Gbps SFP transceiver modules support:
    • 10Gbps ‘-SR’-grade SFP+ transceiver modules with up to 220m of OM1, OM2, OM3, OM4 fiber
    • 10Gbps ‘-LR’-grade SFP+ transceiver modules with up to 80km of SM fiber
    • 10Gbps passive copper SFP+ transceiver modules with up to 15m of twinax copper cable
    • 1Gbps SFP transceiver modules with SM fiber, MM SR fiber, and CAT5 cable
  • Optional functions:
    • Independently enabled and configured secure communication for uplink SFP+ ports
      (complies IEEE 802.1ae, GCM-AES-128)  (T/AX-DSFPX-A only)
    • “Swap” mode for front panel uplink SFP+ ports
    • Traffic statistics for uplink SFP+ ports and AMC backplane ports (T/AX-DSFPX-A only)

Front panel LED indicators and connectors

  • Status LEDs (per each uplink SFP+ port):
    • “Module Health Status” LED (bi-color Red/Green)
    • “AMC Backplane Port Link Status” LED (Yellow)
    • “Uplink Status” LED (Green)
    • “Uplink Error” LED (Red)
  • AMC Blue LED, bi-color AMC LED1 (power status), bi-color AMC LED2 (temperature status
  • 115kBaud COM/RS232C port for MMC command line console for device configuration and monitoring

AMC I/F ports

  • AMC Fabric-D/E/F/G ports #4..#7 and #8..#11 with independent PCS settings:
    • AMC.2 10GBASE-BX4 (XAUI) PCS for AMC abric-D/E/F/G fat pipe ports #4..#7 and #8..#11 (default)
    • 10GBASE-R/KR PCS for AMC Fabric-D or Fabric-F ports  #4 or #6 and ports #8 or #10 (optional)
    • 10GBASE-X2 (RXAUI) PCS for AMC Fabric-{D, E} or Fabric-{F, G} ports  {#4, #5} or {#6, #7} and ports {#8, #9} or {#10, #11} (optional)
  • MMC: IPMB-L port

MMC (AMC module management controller)

  • Firmware based on TORNADO AMC MMC (TAMMC®) MMC-kernel from MicroLAB Systems
  • Compatible with IPMI 1.5, IPMB CPS v1.0, PICMG® 3.0 rev.3.0, AMC.0 R2.0 and MTCA.0 R1.0 specifications
  • High-speed monitoring of payload power and all backend power supplies (voltage and current), tolerance control
  • Power status indication via on-board bi-color “Power Status” LED and bi-color AMC LED1 at front panel
  • Multi-point monitoring of PPCB, SFP+ modules and on-board critical components with tolerance contro
  • Temperature status indication via on-board bi-color “Temp Status” LED and bi-color AMC LED2 at front panel
  • Remote MMC console via MMC 115kBaud COM/RS232C port

Physical

  • Single width (S/W) Mid-size (M/S) AMC card form factor (181 õ 74 õ 19 mm)
  • Weight 0.24 kg

Power and temperature

  • AMC Payload Power (P/P):
    • T/AX-DSFPX: +12V @ 0.8A (typ) (9W typ)
    • T/AX-DSFPX-A: +12V @ 1.3A (typ) (15W typ)
  • AMC Management Power: +3.3V @50mA (typ)
  • Operational temperature (ambient) without forced cooling: 0ºC...+40ºC
  • Operational temperature (ambient) with forced cooling (200CFM): 0ºC...+65ºC
  • Storage temperature (ambient): -40ºC...+80ºC



Ordering Info

  T/AX-DSFPX   Dual 10GbE SFP+ Network AMC-module (mid-size, single-width)
  T/AX-DSFPX-A   Dual 10GbE SFP+ Network AMC-module (mid-size, single-width) with secure uplink communication and traffic statistics options



Datasheets and Application Materials

  T/AX-DSFPX Network AMC-module datasheet
  Paper in Russian 'Components and Technologies' magazine (Jan-2015): "TORNADO-A6678 AMC-module Applications in MicroTCA DSP Systems" (Rus)
  Paper in Russian 'Telecommunications' magazine (Jan-2015): "TORNADO-A6678 AMC-module Applications in MicroTCA DSP Systems" (Rus)
  Application note AN-TARxMTCA-1A (2016-01) (Rus):
O.A.Vasiliev, P.A.Semyonov: "Distributed Multichannel Radiomonitoring Systems TORNADO-RxMTCA®
"
  Paper in 'Information Security - Inside' magazine (Jan-2016): "Rubic's Radiocude: Building a Multichannel Radio Monitoring System"
