  TORNADO-A6678
AMC-module/controller with TI TMS320C6678 DSP and Xilinx Virtex-7 FPGA

Home

News

Products

Price

Publications

Support

About

Contacts

Contents





Texas InstrumentsFreescale Power PC Processors
PICMG Open Modular Computing Standards
PICMG Advance Mezzanine Card (AMC) Specification
PICMG MicroTCA Specification





Key features

  • Ultra-High Performance DSP/FPGA AMC-module for PICMG MicroTCA/AdvancedTCA and Standalone/Embedded applications
  • 8-core Texas Instruments TMS320C6678 DSP (1.25GHz 320GMAC, 160GFLOPS) and Xilinx Virtex-7 FPGA (XC7VX330T, XC7VX415T, XC7VX690T)
  • High-speed industry standard I/O AMC interfaces (10GbE, 40GbE, 1GbE, Serial RapidIO, PCIe) and 10Gbps+ SFP+
  • Meets PICMG 3.0 Rev.3.0, AMC.0 R2.0 and IPMI v1.5 specifications
  • Installs into MicroTCA chassis and AdvancedTCA mainboard
  • Stand-alone operation and embedded applications

Details

  • AMC high-speed multi-lane Fabric-D/E/F/G Fat Pipe ports #4..#7 and #8..#11 (10GBASE-BX4 (XAUI), 40GbE (4x 10GbE), 4x 5Gbps Serial RapidIO, 4x 5Gbps PCIe) from FPGA and AMC Fabric-A 1GbE SGMII port #0 from DSP for AMC management
  • DSP-to-FPGA communication via 4x channel 5Gbps Serial RapidIO I/F for the total or 40Gbps throughoutput
  • FPGA 10Gbps+ SFP+ port for external I/O
  • Up to 8GB DDR3 DSP memory
  • 1Gb FLASH for DSP bootloader, system monitor, user applications and FPGA bitstreams
  • DSP EMIF16 bus (30MWPS) for access to FLASH and FPGA
  • DSP 1GbE RJ45 and 155kBaud COM/RS232C ports for remote module management
  • User controlled front-panel DSP and FPGA LEDs for indication of DSP/FPGA user application status
  • Optional XDEBUG front-panel connector for DSP/FPGA JTAG emulators and DSP/MMC remote consoles
  • MMC controller with MicroLAB Systems TAMMC MMC-kernel and high-speed monitoring of on-board power supplies and temperatures for reliable module operation and protection
  • Stand-alone/embedded operation from external +12V power and external communication via 10GbPS+ SFP+, 1GbE RJ45 and COM/RS232C ports
  • Available in Mid-size (M/S) and Full-size (F/S) AMC form-factors

Development Tools

  • TI Code Composer Studio tools and MicroLAB Systems MIRAGE-NC2/NE1 JTAG emulators for TI DSP
  • Xilinx ISE/Vivado tools and IP for FPGA
  • MicroLAB Systems TORNADO-Axxx SDK (TASDK) tools with high-level API function libraries, bootloader and system monitor for development of user DSP and PC applications and system control
  • DSP and FPGA demo projects for tests and user application basis

Applications

  • Telecommunication
  • RF and digital radio
  • Cell telephony
  • General stand-alone and distributed DSP applications
  • Image processing
  • Radars and astrophysics
  • Industrial, telemetry and instrumentation
  • Medical



** Notes

MicroLAB Systems can modify this product to meet special customer requirements. MOQ may apply. Contact MicroLAB Systems for more details.

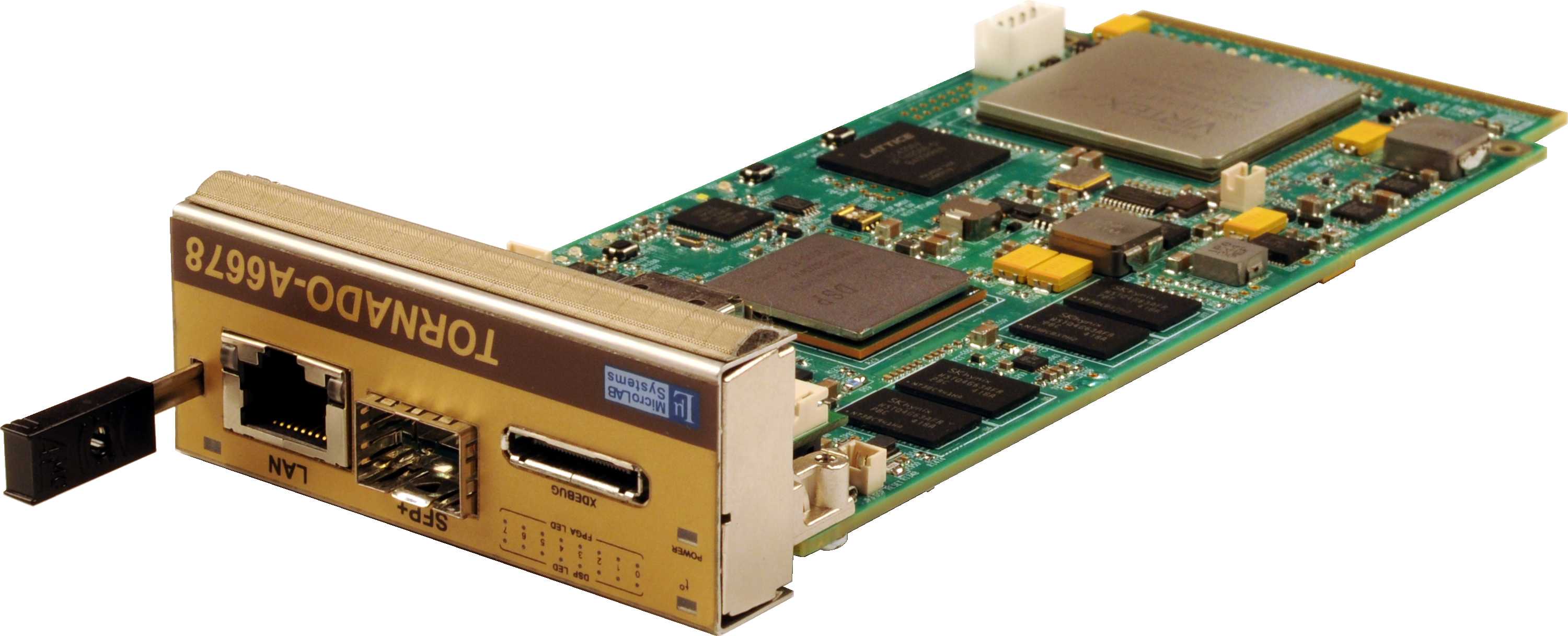

Full-size TORNADO-A6678 AMC-module with TI TMS320C6678 DSP and Xilinx Virtex-7 FPGA (click to enlarge)
TORNADO-A6678 full-size (F/S) AMC-module
(click to enlarge)


Mid-size TORNADO-A6678 AMC-module (click to enlarge)
TORNADO-A6678 mid-size (M/S) AMC-module
(click to enlarge)

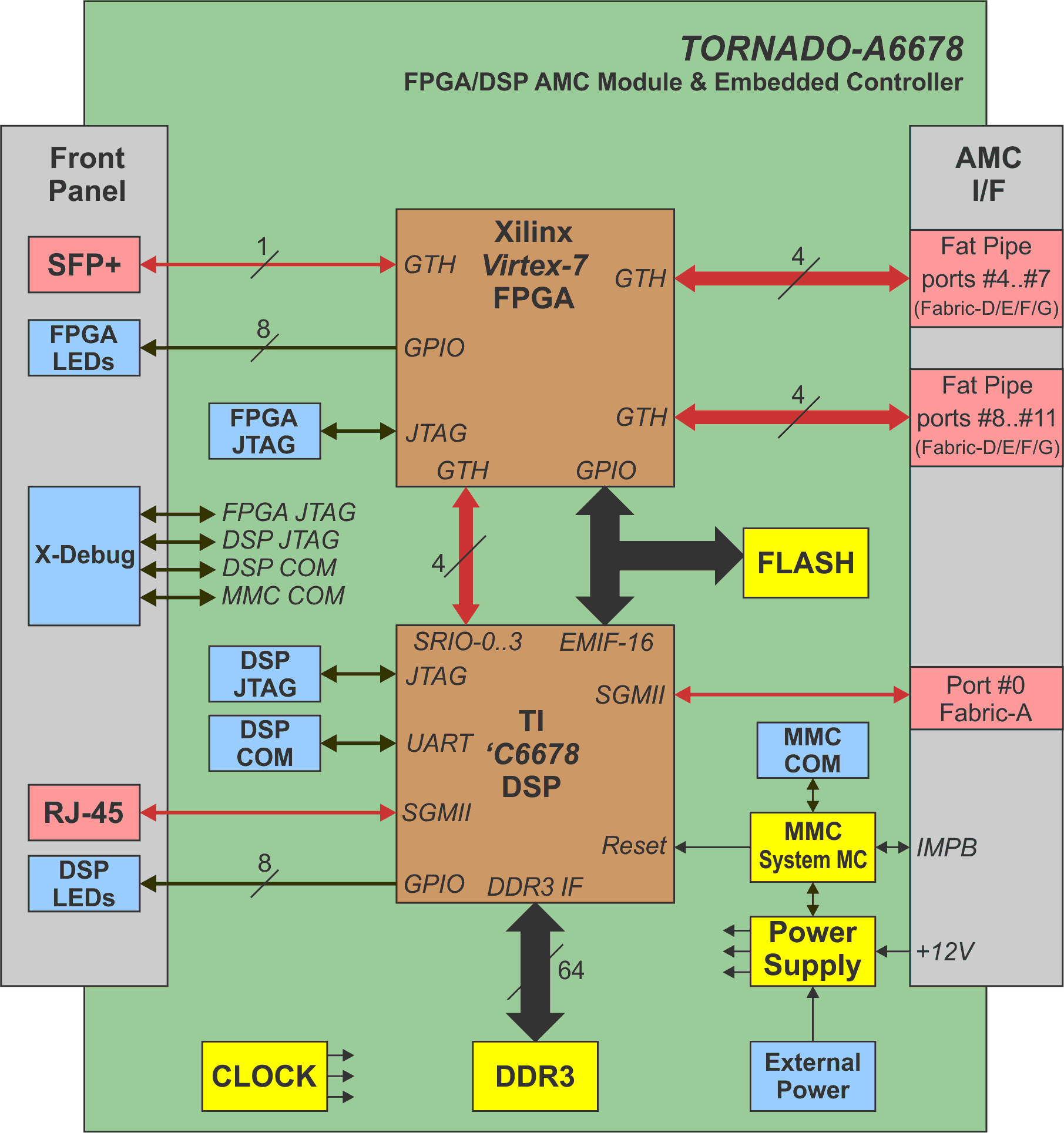

TORNADO-A6678 Block Diagram (click to enlarge)
TORNADO-A6678 Block Diagram
(click to enlarge)

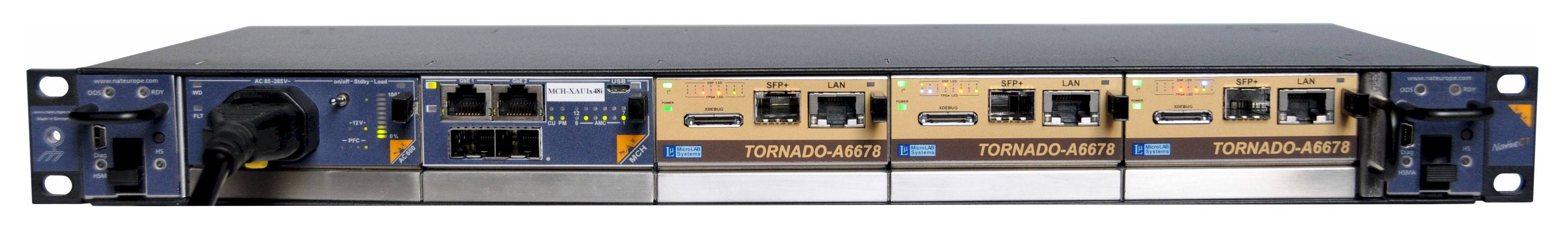

Modular TORNADO-MTCA DSP system with three F/S TORNADO-A6678 AMC-modules in 19" 1U 6-slot MicroTCA chassis with 10GbE backplane switch
Modular TORNADO-MTCA DSP system with three F/S TORNADO-A6678 AMC-modules in 19" 1U 6-slot MicroTCA chassis with 10GbE backplane switch
(click to enlarge)


Modular TORNADO-RxMTCA Radio-monitoring system with high-performance DSP comprising two TORNADO-ARX1 radio-processing AMC-module, M/S TORNADO-A6678 AMC-module and T/AX-DSFPX network AMC-module in 19" 1U 6-slot MicroTCA chassis with 10GbE backplane switch
Modular TORNADO-RxMTCA Radio-monitoring system
with high-performance DSP comprising two TORNADO-ARX1 radio-processing AMC-module, M/S TORNADO-A6678 AMC-module and T/AX-DSFPX network AMC-module in 19" 1U 6-slot MicroTCA chassis with 10GbE backplane switch
(click to enlarge)


Modular TORNADO-MTCA DSP system with four M/S TORNADO-A6678 AMC-modules and two T/AX-DSFPX network AMC-modules in 19" 1U 6-slot MicroTCA chassis with 10GbE backplane switch
Modular TORNADO-MTCA DSP system with four M/S TORNADO-A6678 AMC-modules and two T/AX-DSFPX network AMC-modules in 19" 1U 6-slot MicroTCA chassis with 10GbE backplane switch
(click to enlarge)


Modular mini TORNADO-RxmMTCA Radio-monitoring system with high-performance DSP comprising TORNADO-ARX1 radio-processing AMC-module and F/S TORNADO-A6678 AMC-module in 2-slot MicroTCA mini-chassis with passive backplane
Modular mini TORNADO-RxmMTCA Radio-monitoring system with high-performance DSP comprising
TORNADO-ARX1 radio-processing AMC-module and F/S TORNADO-A6678 AMC-module in 2-slot MicroTCA mini-chassis with passive backplane
(click to enlarge)


Modular TORNADO-mMTCA mini DSP system with F/S TORNADO-A6678 AMC-module and T/AX-DSFPX network AMC-module in 2-slot MicroTCA mini-chassis with passive backplane
Modular TORNADO-mMTCA mini DSP system with F/
S TORNADO-A6678 AMC-module and T/AX-DSFPX network AMC-module in 2-slot MicroTCA mini-chassis with passive backplane
(click to enlarge)

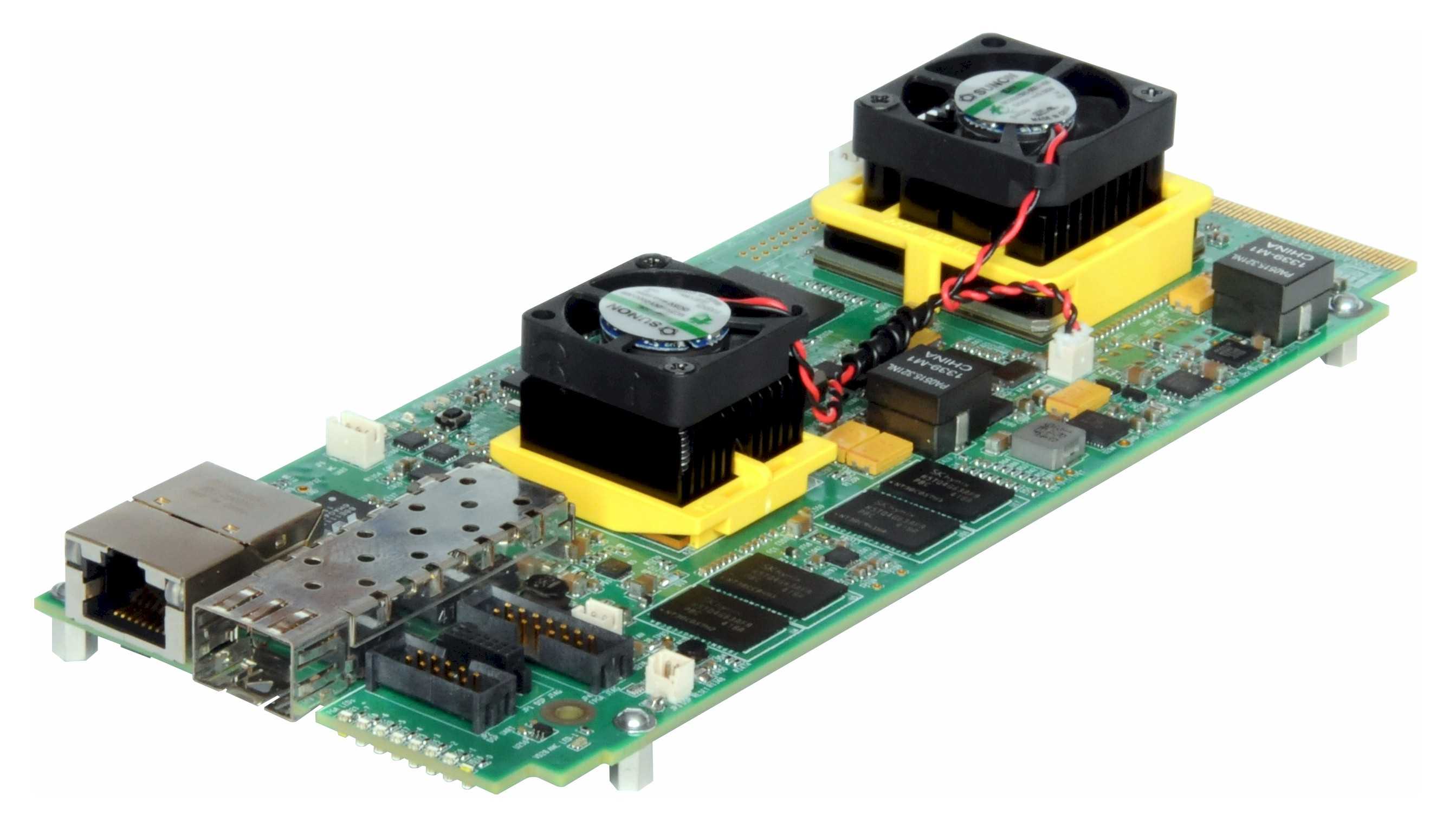

TORNADO-A6678 AMC-module as an embedded controller (without AMC front panel and with DSP/FPGA fans) (click to enlarge)
TORNADO-A6678 AMC-module as an embedded controller
(click to enlarge)



Technical Specifications (TORNADO-A6678 rev.1B)

DSP

  • Texas Instruments TMS320C6678 Fixed/Floating-point DSP, 8-cores, 1.25GHz (320GMAC/160GFLOPS)
  • 128M/256M/512M/1Gx64 (1GB/2GB/4GB/8GB) 1333MTPS on-board DDR3 memory (specify on ordering)
  • On-board 1Gb (64Mx16) FLASH and 512K (64Kx8) SEEPROM
  • 4x-channel 5GbPS Serial Rapid ports (connected to FPGA)
  • Two SGMII ports (connected to AMC I/F port #0 and 1GbE RJ45 port)
  • COM/RS232C 115kBaud UART port (available at front panel)
  • I2C I/F (used for on-board communication, not available for user applications)
  • EMIF-16 16D/24A I/F (used for  access to FLASH, FPGA configuration, FPGA access, etc)
  • DSP Bootmodes: None/Debug, EMIF/FLASH, Ethernet
  • Debug port: JTAG (14-pin, LVTTL 3V-5V)

FPGA

  • Xilinx Virtex-7 FPGA XC7VX330T-2FFG1157C, XC7VX415T-2FFG1157C, XC7VX690T-2FFG1157C (specify on ordering)
  • Debug port: JTAG (14-pin, LVTTL 2.5V-5V)

Front panel

  • FPGA 10GbPS+ SFP+ port
  • DSP 1GbE RJ45 port
  • User FPGA application controlled LEDs: 8
  • User DSP application controlled LEDs: 8
  • AMC status LEDs: BLUE LED, Red/green AMC LED1 (Power), Yellow/Green AMC LED2 (tº)
  • Optional XDEBUG front panel connector with adapter cable (used to debug DSP and FPGA applications with closed MicroTCA chassis or AdvancedTCA mainboard) (selected on product ordering):
    • DSP JTAG I/F (LVTTL 3V-5V) and DSP RESET knob
    • FPGA JTAG I/F (LVTTL 2.5V-5V)
    • DSP 115kBaud COM/RS232C port  for DSP bootloader control
    • MMC 115kBaud COM/RS232C port for MMC console

AMC I/F ports

  • Meets PICMG AMC.0 R2.0, MicroTCA.0 R1.0 specifications.
  • FPGA: AMC Fabric-D/E/F/G ports 4-7 and 8-11 (AMC.2 10GbE/40GbE, AMC.4 Serial Rapid IO, AMC.1 PCIe)
  • DSP: AMC Fabric-A port 0 (AMC.2 1GbE)
  • MMC: IPMB-L port

MMC (AMC module management controller)

  • Firmware based on TAMMC MMC kernel from MicroLAB Systems
  • Compatible with IPMI 1.5, IPMB CPS v1.0, PICMG 3.0 rev.3.0 AMC.0 R2.0 specifications
  • High-speed monitoring of payload power and all backend power supplies (voltage and current), tolerance control
  • Power status indication via on-board dedicated bi-color LED and bi-color AMC LED1 (available at front panel)
  • Multi-point monitoring of PCB, DSP and FPGA temperatures, tolerance control
  • Temperature status indication via on-board dedicated bi-color LED and bi-color AMC LED2 (available at front panel)
  • Remote MMC console via MMC 115kBaud COM/RS232C port

Physical

  • Single width Full-size (F/S) AMC card (181 74 29 mm) with two compact heatsinks and optional fans or Mid-size (M/S) AMC card (181 74 19 mm)  with one large heatsink without fans (specify on ordering)
  • Weight 0.35 kg
  • Four mounting holes for stand-alone and embedded installations

Power and temperature

  • AMC Payload Power: +12V @ 2.5A (typ) (30W), 4A (max) (48W)
  • AMC Management Power: +3.3V @50mA (typ)
  • External power for stand-alone/embedded applications: +12V @ 2.5A (typ) (30W), 4A (max) (48W)
  • Operational temperature (ambient) without forced cooling: 0ºC...+50ºC
  • Operational temperature (ambient) with forced cooling: 0ºC...+65ºC
  • Storage temperature (ambient): -40ºC...+80ºC



Ordering information



TA6678/X330/D2G/F1G/FS
TA6678/X330/D2G/F1G/MS

  TORNADO-A6678 Full-size (F/S) or Mid-size (M/S) AMC-module with 1.25GHz TMS320C6678 DSP, Xilinx Virtex-7 XC7VX330-2FFG1157C FPGA, 2GB (256Mx64) DDR3 memory, 1Gb (64Mx16) FLASH memory


TA6678/X415/D2G/F1G/FS
TA6678/X415/D2G/F1G/MS

  TORNADO-A6678 Full-size (F/S)  or Mid-size (M/S) AMC-module with 1.25GHz TMS320C6678 DSP, Xilinx Virtex-7 XC7VX415-2FFG1157C FPGA, 2GB (256Mx64) DDR3 memory, 1Gb (64Mx16) FLASH memory


TA6678/X690/D2G/F1G/FS
TA6678/X690/D2G/F1G/MS

  TORNADO-A6678 Full-size (F/S)  or Mid-size (M/S) AMC-module with 1.25GHz TMS320C6678 DSP, Xilinx Virtex-7 XC7VX690-2FFG1157C FPGA, 2GB (256Mx64) DDR3 memory, 1Gb (64Mx16) FLASH memory



Datasheets and Application Materials

  TORNADO-A6678 AMC-module datasheet
  Paper in Russian 'Components and Technologies' magazine (Jan-2015): "TORNADO-A6678 AMC-module Applications in MicroTCA DSP Systems" (Rus)
  Paper in Russian 'Telecommunications' magazine (Jan-2015): "TORNADO-A6678 AMC-module Applications in MicroTCA DSP Systems" (Rus)
  Application note AN-TARxMTCA-1A (2016-01) (Rus):
O.A.Vasiliev, P.A.Semyonov: "Distributed Multichannel Radiomonitoring Systems TORNADO-RxMTCA
"
  Paper in 'Information Security - Inside' magazine (Jan-2016): "Rubic's Radiocube: Building a Multichannel Radio Monitoring System"
